Description
Baofeng UV-17 Pro is a major upgrade from the Baofeng UV-5R. You get a reliable and powerful communication radio. With a maximum power of 5W, it provides a clear and strong signal even in noisy environments. The compact and portable design makes it easy to carry with you everywhere.
We have pre-programmed the radio for you with the free hunting channels on the 155 mHz band, the PMR channels on the 444 mHz & 446mHz band (the same throughout the EU). So you don't need to buy a separate programming cable. A total of 31 channels to choose from, all legal to use. In addition, all 7 hunting channels are pre-programmed with the first 10 pilot tones. This makes this radio the ultimate hunting radio. Just step up until you get to Hunting 3 - 91.5 if that's the one you use. The fact that you can then listen to another channel (the neighboring hunting team's perhaps) is also a plus. A total of 110 pre-programmed channels to choose from
An incredibly versatile, affordable and capable radio. Perfect for those who want everything in one radio.
Three bands
It can receive on all frequencies between , 65-108 mHz (FM band), 136-174 & 400-520 MHz.
You can also listen to FM radio on it, so it also works as an emergency radio.
It can transmit on all frequencies between 136-174 & 400-520 MHz
999 programmable channels
Pilot tones
Hands-free through voice activated transmission
A/B-band independent operation (you can monitor an extra channel, on the A channel you can listen and transmit, on the B channel you can only listen)
Automatic button lock.
1.44 inch color LCD
220V charging in the desktop charger
USB charging, USB-A to USB-C cable included
For users who only want to monitor one channel but want to see both channel name and frequency information on the display, the Sync feature will be very helpful.
UHF VHF scanner + 3 scanning modes
Channel Scan: Scan through your preset scan list.
Frequency range scanning: Set a frequency range in the menu and it will scan precisely within that range, even with just 1 MHz apart.
Pilot Tone Scan: Scan all CTCSS/DCS tones for the current frequency.
PC & Manually programmable, programming via PC requires programming cable
In addition to programming the radio via computer software, users can also use the keypad to program most settings in the menu, such as adding/removing a memory channel, adding/removing a channel from the scan list, adjusting VOX/squelch/power save levels, etc.
Good range (increase with our tactical antenna if you need)
In the box:
- A Baofeng UF-17 PRO
- Charger
- Antenna
- Wrist strap
- Belt clips
- Manual, in English, Swedish manual you can download on our website.
Full specification:
Main features
- CTCSS / CDCSS (pilot tones)
- VOX function (voice activated transmission)
- Voice message
- PC programming
- Emergency alarm
- Desktop charger
- Battery saving
- Low voltage warning
- Timeout timer
- Flashlight
Generally
Frequency range (single band) UHF 420-450 MHz
Channel capacity 16
Channel spacing 25KHz
Operating voltage DC 3.7 V
Battery 1,500 mAh Li-ion
Battery life Approximately 8 hours
Frequency stability ±2.5ppm
Operating Temperature 30°c-+60°c
Antenna impedance 50Ω

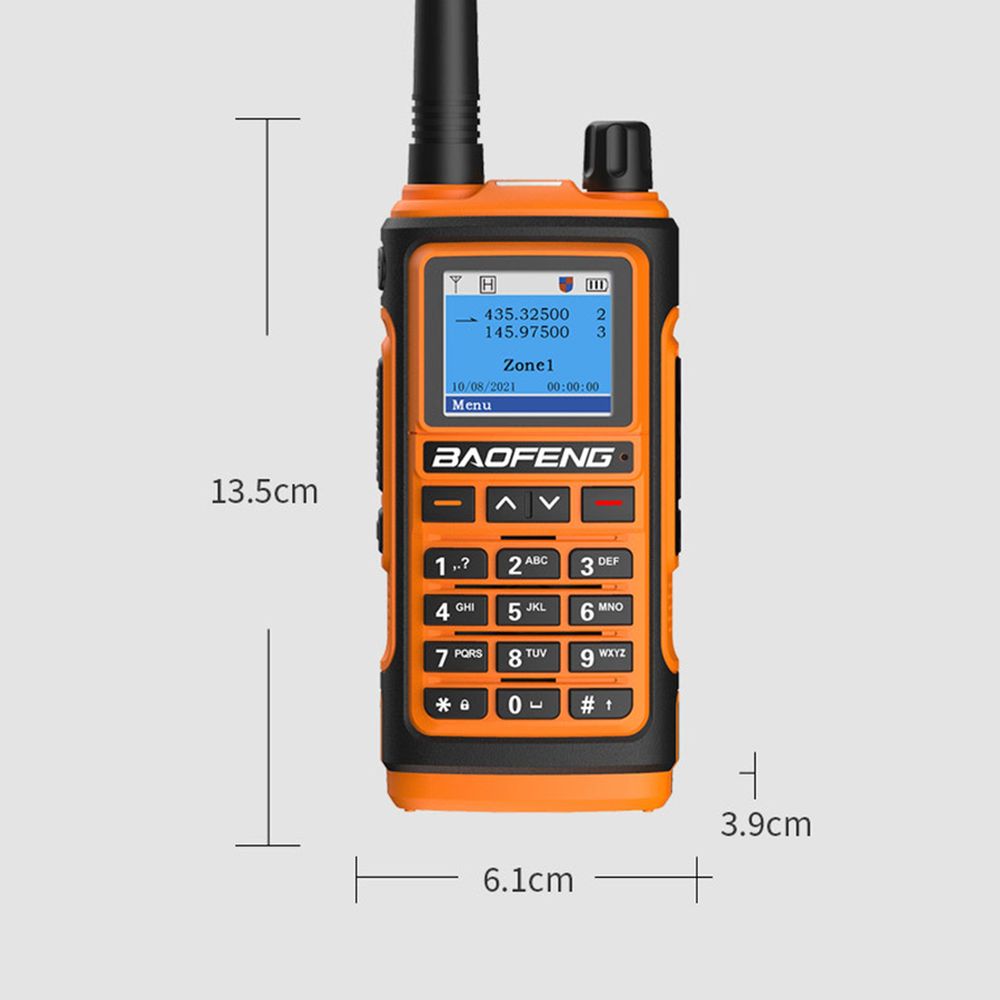

Dimensions (L×W×H) (with battery, without antenna) 115×60×33 mm (without antenna)
Weight (with battery/antenna) 180g
Communication range approx. 6km
The recipient's
Sensitivity (12dB SINAD) ≤0.20 uV
Selectivity 55dB/50dB
Intermodulation ≥65dB
Adjacent channel selectivity ≥60dB
FM noise 45dB/40dB
Sound power 1000mW
For legal use, the radio should be used on the 155 mHz band (Hunting 1-6) as is or without an antenna and with a maximum of 0.5w power on the PMR and SRDR channels.
You may only transmit on the free frequencies. All use is at your own risk.
Entered frequencies:
Channel Frequency
| PMR 1 | 446.00625 |
| PMR 2 | 446.01875 |
| PMR 3 | 446.03125 |
| PMR 4 | 446.04375 |
| PMR 5 | 446.05625 |
| PMR 6 | 446.06875 |
| PMR 7 | 446.08125 |
| PMR 8 | 446.09375 |
| PMR 9 | 446.10625 |
| PMR 10 | 446.11875 |
| PMR 11 | 446.13125 |
| PMR 12 | 446.14375 |
| PMR 13 | 446.15625 |
| PMR 14 | 446.16875 |
| PMR 15 | 446.18125 |
| PMR 16 | 446.19375 |
| Hunting 1 | 155.4 |
| Hunting 2 | 155,425 |
| Hunting 3 | 155.45 |
| Hunting 4 | 155,475 |
| Hunting 5 | 155.5 |
| Hunting 6 | 155,525 |
| SRBR Channel 1 | 444.6 |
| SRBR Channel 2 | 444.65 |
| SRBR Channel 3 | 444.8 |
| SRBR Channel 4 | 444,825 |
| SRBR Channel 5 | 444.85 |
| SRBR Channel 6 | 444,875 |
| SRBR Channel 7 | 444,925 |
| SRBR Channel 8 | 444,975 |
